OKM Evolution NTX

Features of the OKM Evolution NTX

• 3D imaging.
• 3D ground scanning.
• Color screen/touch screen.
• GST/EMSR.
• Height adjustment.
• VLF search coil.
• LED lighting.
• Multilingual.
• High-capacity rechargeable battery.
• Speaker.
• Wireless technology.

Technologies of the OKM Evolution NTX

3D Metal Detector for Treasure Hunters and Gold Seekers The OKM Evolution NTX 3D metal detector and ground scanner can be used by treasure hunters, gold seekers, and archaeologists looking for buried items, hidden artifacts, or other lost objects such as:

• Lost valuables (rings, coins, jewelry, wedding bands)
• Buried treasures and artifacts
• Old chests, rooms, and tombs

Unlike other metal detectors, the Evolution NTX can process 3D graphical images of underground objects and detected anomalies. This allows you to determine the size and depth of potential finds before digging.

The deep penetration capability is just another advantage of our 3D ground scanner. Many great treasure discoveries prove the potential of our German-made metal detection technology.
The OKM Evolution NTX is more compact and comes with enhanced features such as rechargeable internal batteries, ease of use, and more powerful sensor and coil technology.

Improved Usability

Based on our experiences and suggestions from many OKM users, the new model has been improved and developed in various aspects:

• Long-lasting and rechargeable batteries
• Higher resolution color touch screen
• Integrated Bluetooth headphones
• More compact and robust design
• Improved sensor and coil technology

Display and Operation Features of the OKM Evolution NTX

A full-color touch screen with a multilingual user interface allows for easy operation and setup of the Evolution NTX metal detector. The screen brightness can be adjusted individually.

VLF Metal Detector

The combination of our sensor technology and the VLF search coil allows not only for the detection of near-surface metals but also for deeply buried artifacts and valuable items.

Telescopic Search

The length of the OKM Evolution NTX metal detector can be adjusted to fit the individual user's height, providing a comfortable and efficient user experience.

Ground Scanning and Metal Detection

The 3D ground scanner of the Evolution NTX supports two operating modes for searching the soil underground for hidden objects and structures. The length of the detector can be individually adjusted according to the user's height.

This allows you to customize the metal detector to your specific needs. Starting from the main menu, you simply select one of the operating modes:

Live Sound

This mode activates the VLF metal detector to find shallow metallic objects such as coins, rings, and other jewelry. In addition to audio output, you can also see a simple graphical signal indicator.

3D Scanning

This mode is used to perform graphical 3D ground scans. All scan data is stored in the device's memory. This information can be transferred to the Visualizer 3D software to create 3D graphical images of underground objects and structures.

3D Images via Visualizer 3D Software

The OKM Evolution NTX 3D metal detector and ground scanner can be used by treasure hunters, gold seekers, metal detector enthusiasts, and archaeologists. Using the 3D scanning function and Visualizer 3D software, you can create an underground 3D rendering and find buried coins, rings, jewelry, treasures, and similar artifacts. Metal objects can be successfully detected. Buried objects are indicated in different colors in a 3D graphical representation.

Uses of the OKM Evolution NTX

• Treasure hunting
• Archaeology
• Militia detection
• Cavity detection
• Explosive ordnance disposal services
• OKM search services

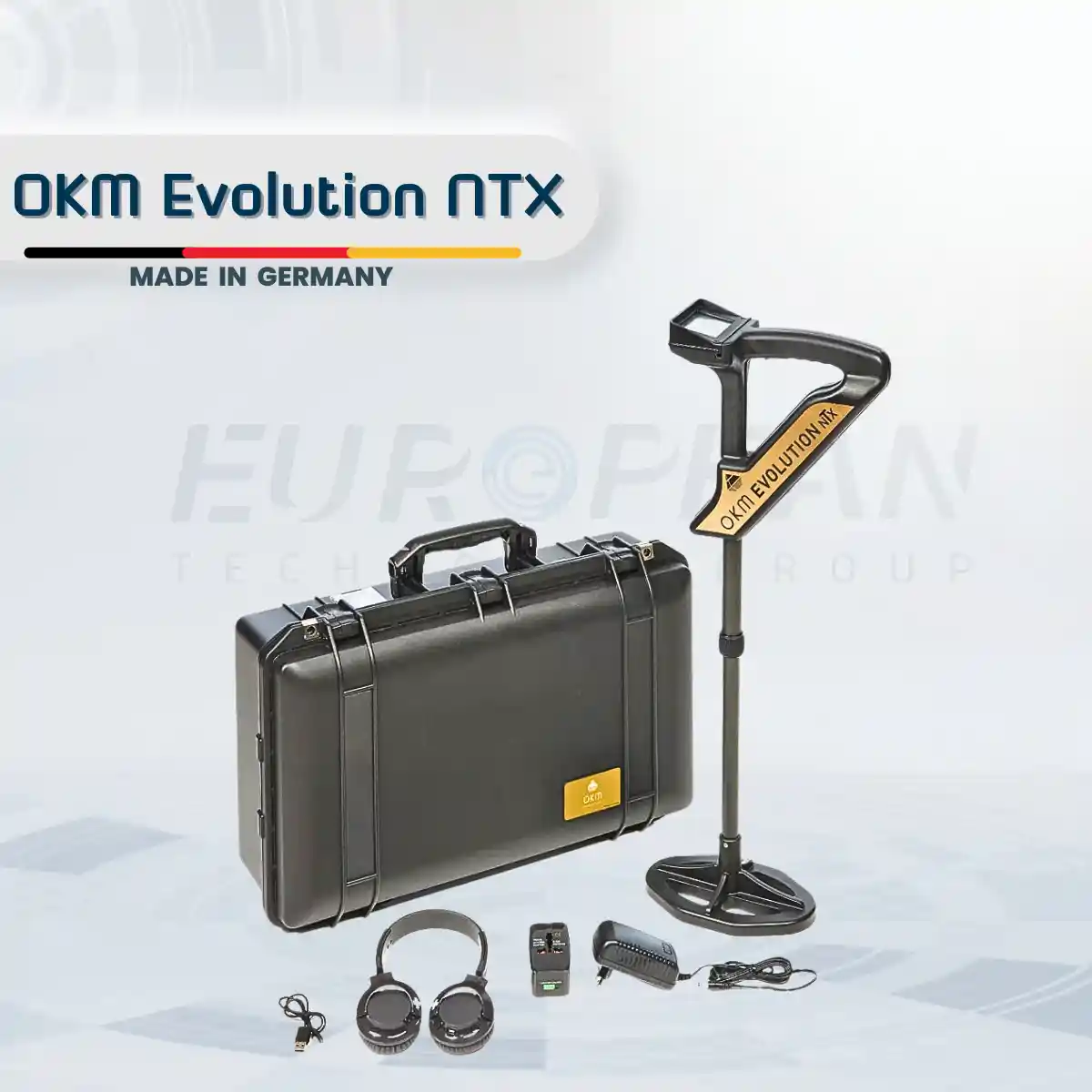

Components of the OKM Evolution NTX

• Control unit
• Pre-configured Windows laptop
• USB flash drive with the standard version of OKM Visualizer 3D Studio software
• Included Bluetooth headphones
• Charger with charging cable
• Travel adapter
• Waterproof and shock-resistant protective case
• Quick start guide

Features of the OKM Evolution NTX

Control Unit

• Dimensions (H x W x D): 540-810 × 150 × 280 mm
• Weight: Approximately 1.5 kg
• Maximum input voltage: 19V DC, 3.16A, 60W
• Main CPU: Cortex M3, 32 MHz
• Auxiliary CPU: Cortex M0, 24 MHz
• Screen: 3.5-inch resistive touch, 480 × 320 pixels
• Screen CPU: Cortex M3, 32 MHz, 128 KB RAM
• Data memory: 4 GB
• Sampling rate: 1024 values/second
• Measurement accuracy: 16-bit
• Operating temperature: –10°C to 60°C
• Storage temperature: –20°C to 70°C
• Sound: Internal speaker / Bluetooth
• Waterproof: No
• Technology: GST / EMSR
• Sensor/coil technology: SCMI-15-D / VLF
• Air humidity: 5% – 75%

Data Transfer

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum transfer rate: 1 Mbps
• Maximum transmission power: +8 dB
• Maximum range: Approximately 10 m

Minimum Computer Requirements

• Interface (data transfer): USB 2.0
• Free disk space: Minimum 250 MB
• RAM: 2 GB
• Screen: 1920 × 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

Technical data are average values. Slight deviations may occur during operation.
