OKM Fusion Light

Technologies of the OKM Fusion Light

Beginner-Friendly Ground Scanner Operating Modes

The 3D ground scanning mode allows treasure hunters to discover gold treasures and underground anomalies, with scan data instantly visualized on a smartphone via the Android app. With the integrated magnetometer, this device can locate ferrous metals such as weapons and iron boxes filled with silver and gold coins, valuable items, and artifacts.

Discover a New Dimension in Treasure Hunting with the OKM Fusion Light

The OKM Fusion Light is a compact, easy-to-use 3D ground scanner with a smartphone app, ideal for beginners and treasure hunters on a budget. Its ease of use and portability make it perfect for achieving initial successes in treasure hunting quickly.
This small OKM Fusion Light device contains everything needed for quick and successful treasure hunting. It is lightweight compared to other metal detectors and 3D ground scanners, featuring an integrated control unit with built-in sensors, and is controlled via an Android app. Operating modes such as the magnetometer and 3D ground scanning are essential for successful treasure hunting. After scanning the target area, the measurement results are graphically displayed using the Android app directly on a smartphone (or tablet) and can be further analyzed using the Visualizer 3D Studio software on a Windows laptop.

Metal Object Detection Using the Magnetometer

In magnetometer mode, magnetic field anomalies are instantly displayed on the smartphone screen. This way, potential discoveries such as artifacts, treasure chests, old ammunition, and other iron objects can be easily detected. Experienced treasure hunters use the magnetometer before scanning the target area with 3D ground scanning to clear the search field of small near-surface objects.

3D Ground Scanning with OKM Fusion Light

Detecting anomalies using 3D ground scanning helps treasure hunters, military researchers, and historians track underground cavities and artifacts. Discoveries and potential findings can be displayed on an Android smartphone via the OKM Fusion Light app and saved for further analysis. Treasure hunters obtain a more accurate 3D image by transferring scan data to a laptop and analyzing the images with Visualizer 3D Studio software.

Analyzing Scan Data with Visualizer 3D Studio

Thanks to Visualizer 3D Studio, 3D ground scan data can be displayed in a detailed three-dimensional rendering on a laptop. After successfully transferring the stored scan data to the computer, users can more accurately determine the position, size, and depth of potential treasures.

Use Cases for OKM Fusion Light

• Treasure hunting
• Militia detection
• Cavity detection
• Archaeology
• Explosive ordnance disposal services
• OKM search services

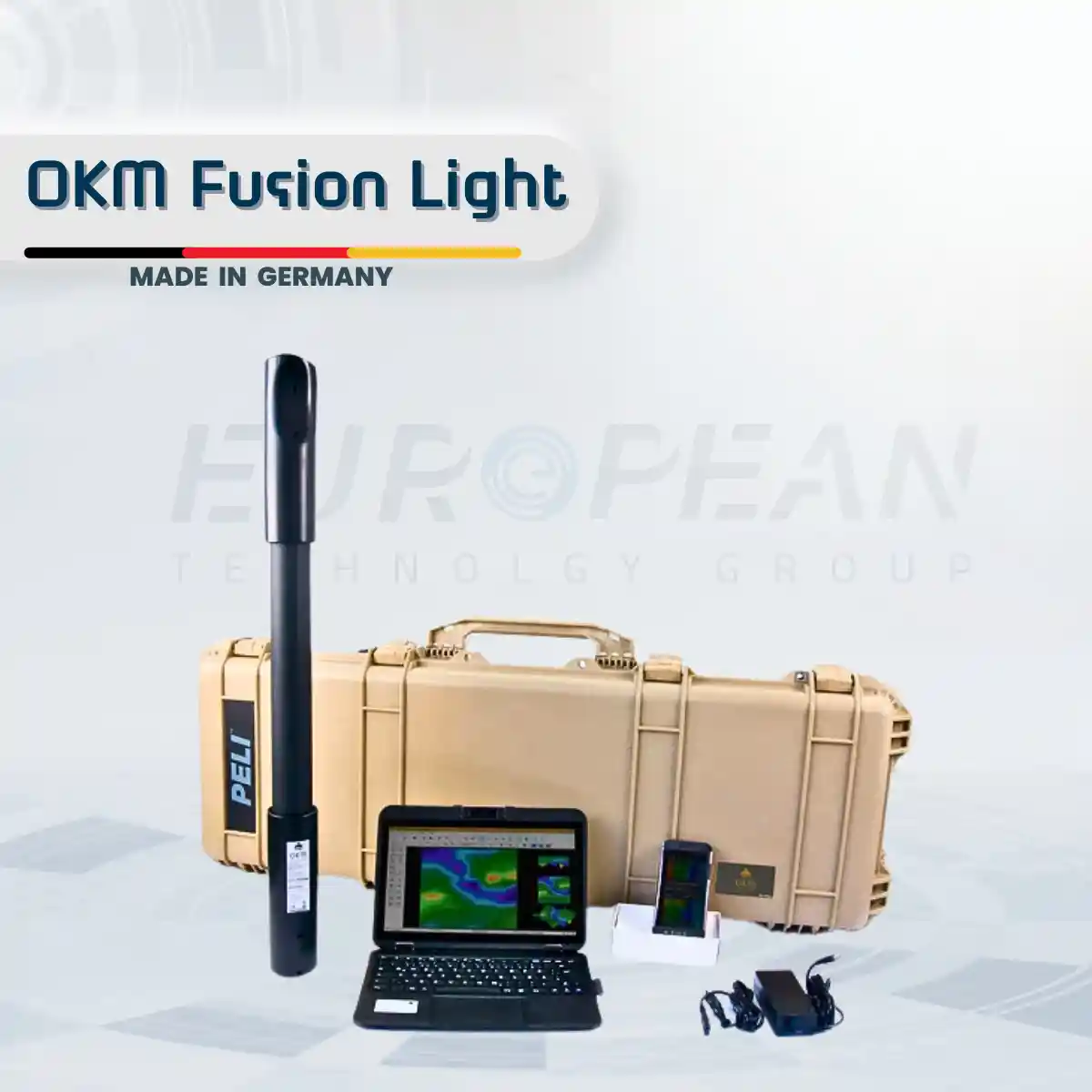

Equipment Components



• Smartphone running Android with pre-installed OKM app
• Windows laptop with OKM Visualizer 3D Studio Standard Edition software (including one license)Charger with charging cable
• Travel adapter
• Waterproof and shock-resistant protective case
• Quick start guide
• OKM Fusion



Fushion Light Specifications

Control Unit

• Dimensions (H x W x D): 800 × 65 × 65 mm
• Weight: Approximately 700 grams
• Maximum input voltage: 19V DC, 3.16A
• Lithium-ion battery: 2600 mAh
• Operating time: Approximately 12 hours
• Charging time: Approximately 3 hours
• Main CPU: Cortex M3, 32 MHz
• Auxiliary CPU: Cortex M0, 24 MHz
• Sampling rate: 1024 values/second
• Measurement accuracy: 16-bit
• Operating temperature: –10°C to 60°C
• Storage temperature: –20°C to 70°C
• Waterproof: No
• Sensor/coil technology: SCMI-15-D
• Air humidity: 5% – 75%
• Protection type: IP40

Data Transfer

• Technology: Bluetooth 5.1
• Frequency: 2.402 – 2.480 GHz
• Maximum transfer rate: 1 Mbps
• Maximum transmission power: +8 dB
• Maximum range: Approximately 10 meters

Minimum Computer Requirements

• Interface (data transfer): USB 2.0
• Free disk space: Minimum 250 MB
• RAM: 2 GB
• Display: 1920 × 1080
• Processor: 1.2 GHz
• Graphics card: 1 GB RAM, OpenGL 3.3
• Operating system: Windows 10

Technical data are average values. Slight deviations may occur during operation.
