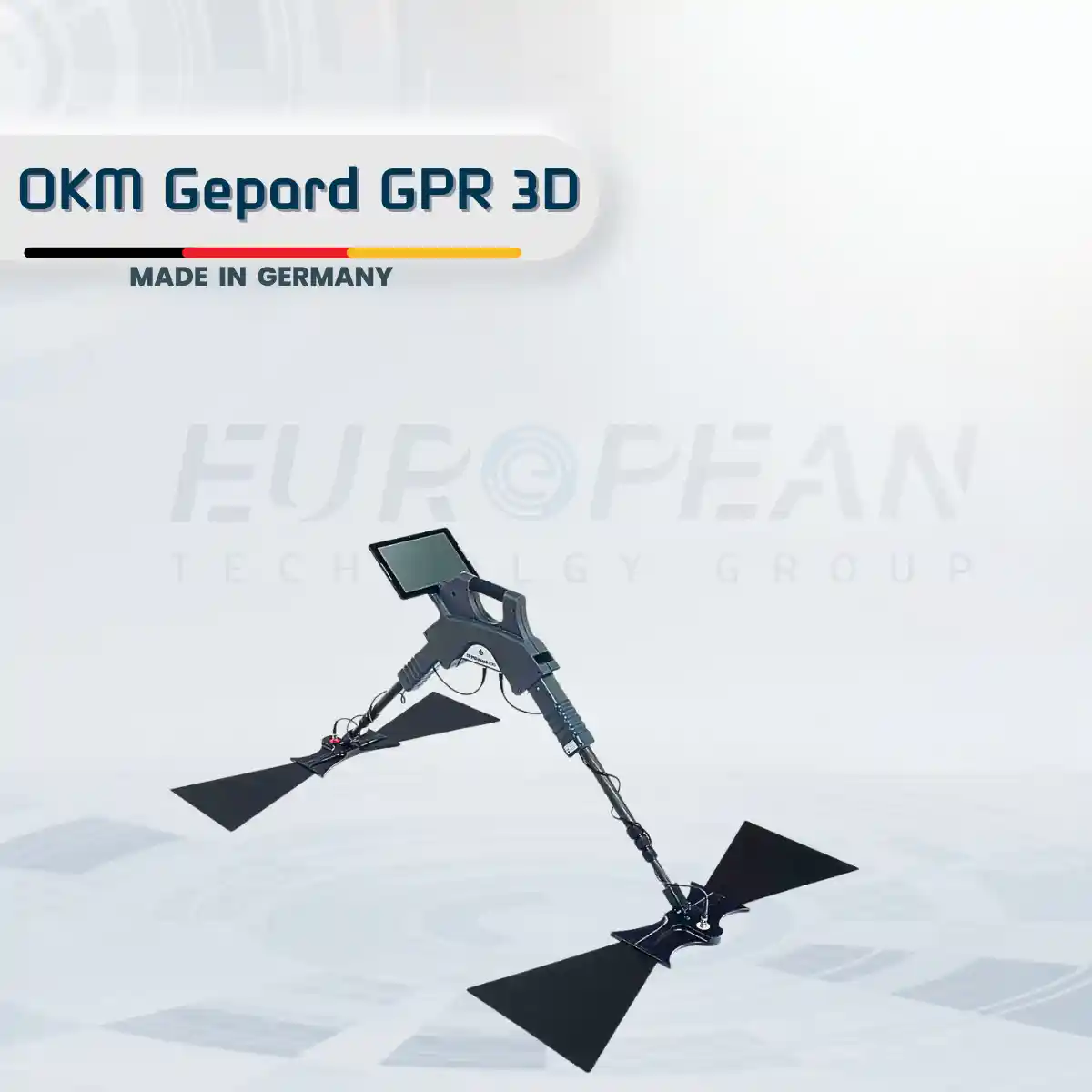

OKM Gepard GPR 3D

Name: OKM Gepard GPR 3D
Brand: OKM
Price: 21720 USD
Availability: InStock

Price: $ 21720.00 PLUS VAT*

ORDER NOW VIA WHATSAPP

4915737338870

Depth: 40 Meters
Guarantee: 3 Years
Made In: Germany

21 Visitors are Watching this Product Now

Purchase

OKM Gepard GPR 3D Price Only $ 21720.00

OKM Gepard GPR 3D is a highly flexible and powerful ground-penetrating radar for detecting underground objects such as pipelines, cavities, cables, ducts, tunnels, bunkers, and foundations. This ground-penetrating radar uses an unshielded multi-directional transmission system to reach depths of up to 40 meters (131 feet). The agile and compact unit can be easily operated by a single user via an Android tablet. The radar sends a signal into the ground and waits for the reflection or echo to detect subsurface anomalies.

Features of OKM Gepard GPR 3D

2D visualization
3D visualization
Live transmission
GPR
Height adjustment
Color touchscreen
Wireless technology
Internal memory
Headphones
Multilingual operation
Speaker
High-capacity rechargeable battery

Detectable Objects and Structures

Underground walls, vaults, and concrete reinforcements
Hidden cavities, graves, and tombs
Water tables, underground rivers, and aquifers
Buried pipelines, ducts, and cable belts
Filled wells, galleries, trenches, and bunkers
Septic tanks, distribution boxes, and sewage pipes
Secret tunnels, and shelters
Buried treasure chests, statues

Enhancing Ground Surveys

OKM Gepard GPR 3D uses a multi-frequency transmission range from 60 MHz to 300 MHz, achieved by adjustable telescopic antennas. It also supports various automatic adjustments to enhance ground surveys on specific soil types, making it extremely easy to handle the Gepard ground radar. Just set the depth accuracy and start scanning.

Analyzing Measurement Data with the Android App

Measured data from the ground-penetrating radar is instantly transferred to the Android tablet. The Android software receives the data via WiFi and displays it directly on the screen. The software offers the option to integrate GPS signals or Google Maps, filter automatically, and input notes to compile specific survey details later. Additionally, the auto-filter option improves scan results and helps find hidden objects and structures more easily. With the integrated GPS system, all survey locations can be stored along with the scan data.

Analyzing GPR Scan in Visualizer 3D Studio

The new views in OKM’s Visualizer 3D Studio software allow for the visualization of discovered structures for more detailed analyses. Once a GPR measurement is opened, the main toolbar includes an additional button. Here you can switch between 2D and 3D views. To enhance the scan image, you can select one of the newly added OKM GPR soil types (right sidebar) and configure the visualization (right sidebar), e.g., select homogenization. In the visualization menu (right sidebar), you can change the "threshold" to regulate the number of hidden/visible scan values and the corresponding colors for the volumetric view. This helps you focus on the most significant targets in the scan image.

Use Cases for OKM Gepard GPR 3D

Archaeology
Geotechnical engineering
Forensic analysis
Public services
Cavity detection
Agriculture
Military detection
Treasure hunting
OKM search services

Components of OKM Gepard GPR 3D

Control unit
Android tablet
Telescopic rod
Transmission antenna
Receiving antenna
USB flash drive with OKM Visualizer 3D Studio Professional Edition
Bluetooth headphones, charging cable included
Charger with charging cable
Travel adapter
Water and shock-resistant protective case
Quick start guide
Optional: Pre-configured Windows laptop

Specifications of OKM Gepard GPR 3D

Control Unit

Dimensions (H x W x D): 450 x 260 x 130 mm
Weight: 1.6 kg
Input voltage (max): 8.4V DC / 1.0A
Operating temperature: –20°C to 55°C
Storage temperature: –25°C to 60°C
Water-resistant: No
Operating time: Approximately 4 hours
Air humidity: 5% – 70%
Feedback: Audible and visual
Protection type: IP 20
Data transfer technology: WiFi, 2.4 GHz
Transmission frequency range: 60 – 300 MHz
Timing/sampling adjustments: 4 levels
Full cycle measurements: 9 per second

Telescopic Rod

Dimensions (H x W x D): 70 x 60 x 590-1630 mm
Weight: 0.80 kg
Operating temperature: –20°C to 55°C
Storage temperature: –25°C to 60°C
Water-resistant: No
Air humidity: 5% – 70%
Protection type: IP 20
Internal battery: 7.26V / 2600mAh

Unshielded Triangular Antenna

Dimensions (H x W x D): 1010 x 330 x 50 mm
Weight: 1.50 kg
Operating temperature: –20°C to 55°C
Storage temperature: –25°C to 60°C
Water-resistant: No
Air humidity: 5% – 70%
Protection type: IP 20

The technical data are average values. Slight deviations during operation are possible.

OKM Gepard GPR 3D is available at the best price by the European Technology Group.

Note: The information and explanations above are the manufacturer's data.

The European Technology Group cannot be held liable and does not provide refunds for improper handling of equipment. They do not guarantee the client the discovery of treasures or precious metals if there is nothing at the place of search. Furthermore, E.T.G. ensures that their OKM Gepard GPR 3D is effective by constantly being calibrated and evaluated by detectors and manufacturers. Therefore, we suggest to our clients analyzing the equipment to make sure they fully understand how advanced and modern this equipment is.

Brand OKM
Depth 40 Meters
Guarantee 3 Years
Made In Germany

Flexible and Powerful

Ground Penetrating Radar using an unshielded multi-directional transmission system to reach maximum depths.

Detection depth

Using this technology, customers have been able to find objects up to 40 meters (132 feet) deep.

Usage scenarios

Archaeology, geotechnical engineering, treasure hunting.
Operating modes: Ground scan, live transmission.

Detectable objects

Underground objects such as pipelines, cavities, cables, ducts, tunnels, bunkers, and foundations.

Steps to Use OKM Gepard GPR 3D

Lorem Ipsum Semt

Dolar Tempus Zana

Dolor Sit Amet Sudo

Fladore Magna Aoaum Erat

Consuctive Vlupatia Edoria

Etiam aliquet odio non port

Click here to login

Frequently Asked Questions

What is the benefit of using the Android app with the Gepard GPR 3D?

The Android app allows for the immediate transfer of measured data to the tablet for real-time display. It also offers advanced options like GPS signal integration, using Google Maps, automatic filtering, and note-taking to compile survey details easily and accurately.
How does the Gepard GPR 3D work?

The device uses ground-penetrating radar (GPR) technology. It sends a radar signal into the ground and waits for the signal reflection to detect subsurface anomalies. The measured data is analyzed in real time on the Android tablet.
Can the OKM Gepard GPR 3D be used easily?

Yes, the device can be easily used by a single user. It is operated and controlled via the Android tablet, making the operation and analysis process straightforward.
